CB-101

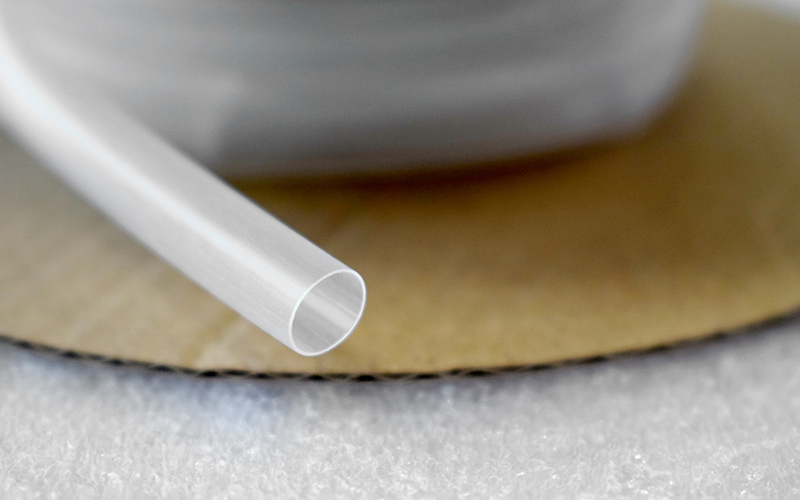

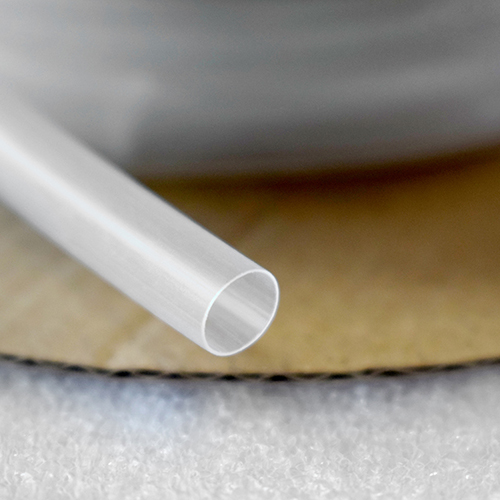

Polyolefin Isıyla Daralan Makaron

Elektronik Uygulamalar için Tek Cidarlı Isıyla Daralan Makaron

Modifiye poliolefin
Küçültme Oranı: 2:1
Yüksek esneklik ve elastikiyet ile parlak kaplama
Hızlı büzülme
Halojen içermez ve RoHS, REACH ve SONY gibi çevre standartlarıyla uyumludur

İrtibat

Uygulamalar

Makaronlarımız aydınlatma armatürleri, otomotiv antenleri ve daha fazlası dahil olmak üzere çeşitli endüstrilerde dekorasyon ve tanımlama amacıyla yaygın olarak kullanılmaktadır.

Özellikler

Yüksek esneklik ve elastikiyet ile parlak kaplama
Hızlı büzülme
Halojen içermez ve RoHS, REACH ve SONY gibi çevre standartlarıyla uyumludur

Teknik Veriler

Özellikler	Test Yöntemi	Performans	Tipik Değerler
Çalışma sıcaklığı	UL224	-55℃~105℃	-55℃~105℃
Eksenel büzülme	ASTMD2671	-5~5％	-3％
Radyal büzülme	ASTMD2671	≥50％	55％
Çekiş gücü	ASTMD638	≥10.4MPa	13.0MPa
Nihai uzama	ASTMD638	≥200％	400％
Sıcak hava fırınında ısıl işlem (135℃±2℃/168h)	-	-	-
İşlem sonrası çekme mukavemeti	ASTMD638	≥7.3MPa	8.6MPa
İşlem sonrası nihai uzama	ASTMD638	≥100％	300%
Çalışma voltajı	UL224	300V/600V	300V/600V
Hacim direnci	ASTMD876	≥1.0×10¹² Ω·cm	2.7×10¹⁴ Ω·cm
Dielektrik gücü(2500V/60s)	UL224	Hasar yok	Hasar yok
Isı şoku(180℃±3℃/4h)	UL224	Damlama yok, akma yok, çatlama yok	Damlama yok, akma yok, çatlama yok
Eşmerkezlilik	ASTMD2671	≥70%	85%

Ölçüler

300V Isıyla Daralan Makaron

Boyut	Olduğu gibi (mm)		İşlem Sonrası (mm)
Boyut	İç Çap	Duvar kalınlığı	İç Çap	Duvar kalınlığı
Ø0.6	0.8+0.2/-0.1	0.15±0.05	≤0.35	0.25±0.06
Ø0.7	0.9+0.2/-0.1	0.13±0.05	≤0.40	0.25±0.06
Ø0.8	1.2+0.2/-0.1	0.13±0.05	≤0.45	0.25±0.06
Ø1.0~Ø1.3	1.3+0.2/-0.1	0.13±0.05	≤0.60	0.25±0.06
Ø1.0~Ø1.6	1.6+0.2/-0.1	0.13±0.05	≤0.60	0.25±0.06
Ø1.5	2.0+0.2/-0.1	0.13±0.05	≤0.80	0.25±0.06
Ø2.0	2.5+0.2/-0.1	0.13±0.05	≤1.00	0.25±0.06
Ø2.5	3.0+0.2/-0.1	0.13±0.05	≤1.25	0.28±0.06
Ø3.0	3.5+0.2/-0.1	0.13±0.05	≤1.50	0.30±0.06
Ø3.5	4.0+0.2/-0.1	0.15±0.05	≤1.75	0.30±0.06
Ø4.0	4.5+0.2/-0.1	0.15±0.05	≤2.00	0.30±0.06
Ø4.5	5.0+0.2/-0.1	0.15±0.05	≤2.25	0.30±0.06
Ø5.0	5.5+0.2/-0.1	0.15±0.05	≤2.50	0.30±0.06
Ø5.5	6.0+0.2/-0.1	0.15±0.05	≤2.75	0.30±0.06
Ø6.0	6.5+0.2/-0.1	0.15±0.05	≤3.00	0.30±0.06
Ø6.5	7.0+0.2/-0.1	0.15±0.05	≤3.25	0.30±0.06
Ø7.0	7.5+0.2/-0.1	0.15±0.05	≤3.50	0.32±0.06
Ø8.0	8.5+0.2/-0.1	0.15±0.05	≤4.00	0.32±0.06
Ø9.0	9.5+0.2/-0.1	0.16±0.05	≤4.50	0.34±0.06
Ø10.0	10.5+0.2/-0.1	0.16±0.05	≤4.00	0.34±0.06
Ø11.0	11.5+0.3/-0.1	0.16±0.05	≤4.50	0.34±0.06
Ø12.0	12.5+0.3/-0.1	0.16±0.05	≤6.00	0.34±0.06
Ø13.0	13.5+0.3/-0.1	0.16±0.05	≤6.50	0.34±0.06
Ø14.0	14.5+0.3/-0.1	0.16±0.05	≤7.00	0.34±0.06
Ø15.0	15.5+0.6/-0.1	0.16±0.05	≤7.50	0.34±0.06
Ø16.0	16.5+0.6/-0.1	0.18±0.05	≤8.00	0.38±0.08
Ø17.0	17.5+0.6/-0.1	0.18±0.05	≤8.50	0.38±0.08
Ø18.0	18.7±0.40	0.18±0.05	≤9.00	0.38±0.08
Ø20.0	21.0±0.5	0.20±0.05	≤10.00	0.42±0.08
Ø22.0	23.0±0.5	0.20±0.05	≤11.00	0.42±0.08
Ø25.0	26.0±0.5	0.20±0.05	≤12.50	0.42±0.08
Ø30.0	31.0±0.5	0.25±0.08	≤15.00	0.48±0.08
Ø35.0	36.0±1.0	0.25±0.08	≤17.50	0.48±0.08

600V Isıyla Daralan Makaron

Boyut	Olduğu gibi (mm)		İşlem Sonrası (mm)
Boyut	İç Çap	Duvar kalınlığı	İç Çap	Duvar kalınlığı
Ø0.7	1.0+0.2/-0.1	0.18±0.05	≤0.40	0.32±0.08
Ø0.8	1.2+0.2/-0.1	0.18±0.05	≤0.45	0.34±0.08
Ø1.0	1.5+0.2/-0.1	0.18±0.05	≤0.60	0.36±0.08
Ø1.5	2.1+0.2/-0.1	0.18±0.05	≤0.80	0.36±0.08
Ø2.0	2.5+0.2/-0.1	0.20±0.05	≤1.00	0.42±0.08
Ø2.5	3.0+0.2/-0.1	0.22±0.05	≤1.25	0.46±0.08
Ø3.0	3.5+0.2/-0.1	0.22±0.05	≤1.50	0.46±0.08
Ø3.5	4.0+0.2/-0.1	0.22±0.05	≤1.75	0.46±0.08
Ø4.0	4.6+0.2/-0.1	0.22±0.05	≤2.00	0.46±0.08
Ø4.5	5.0+0.2/-0.1	0.23±0.05	≤2.25	0.46±0.08
Ø5.0	5.5+0.2/-0.1	0.25±0.05	≤2.50	0.50±0.08
Ø5.5	6.0+0.2/-0.1	0.25±0.05	≤2.75	0.50±0.08
Ø6.0	6.5+0.2/-0.1	0.25±0.05	≤3.00	0.55±0.10
Ø6.5	6.9+0.2/-0.1	0.25±0.05	≤3.25	0.55±0.10
Ø7.0	7.5+0.2/-0.1	0.25±0.05	≤3.50	0.55±0.10
Ø8.0	8.5+0.2/-0.1	0.28±0.06	≤4.00	0.58±0.10
Ø9.0	9.5+0.2/-0.1	0.28±0.06	≤4.50	0.58±0.10
Ø10.0	10.5+0.3/-0.1	0.28±0.06	≤5.00	0.58±0.10
Ø11.0	11.5+0.3/-0.1	0.28±0.06	≤5.50	0.58±0.10
Ø12.0	12.5+0.3/-0.1	0.28±0.06	≤6.00	0.58±0.10
Ø13.0	13.5+0.3/-0.1	0.28±0.06	≤6.50	0.58±0.10
Ø14.0	14.5+0.3/-0.1	0.28±0.06	≤7.00	0.58±0.10
Ø15.0	15.5+0.3/-0.1	0.28±0.06	≤7.50	0.58±0.10
Ø16.0	16.5+0.3/-0.1	0.28±0.06	≤8.00	0.58±0.10
Ø17.0	17.5+0.3/-0.1	0.32±0.08	≤8.50	0.58±0.10
Ø18.0	18.5+0.3/-0.1	0.32±0.08	≤9.00	0.68±0.10
Ø20.0	20.6+0.5/-0.2	0.32±0.07	≤10.0	0.68±0.10
Ø22.0	22.6+0.7/-0.2	0.35±0.08	≤11.0	0.72±0.12
Ø25.0	25.6+0.7/-0.2	0.40±0.10	≤12.5	0.78±0.12
Ø28.0	28.6+0.7/-0.2	0.40±0.10	≤14.0	0.78±0.12
Ø30.0	30.6+0.7/-0.2	0.40±0.10	≤15.0	0.82±0.12
Ø35.0	35.6+0.7/-0.2	0.45±0.10	≤17.5	0.92±0.12
Ø40.0	41.0±0.5	0.50±0.12	≤20.0	1.00±0.15
Ø45.0	46.0±0.5	0.50±0.12	≤22.5	1.00±0.15
Ø50.0	51.0±0.5	0.55±0.15	≤25.0	1.10±0.15
Ø55.0	55.5±1.0	0.55±0.15	≤27.5	1.10±0.15
Ø60.0	60.5±1.0	0.60±0.15	≤30.0	1.25±0.20
Ø70.0	71.0±1.0	0.60±0.15	≤35.0	1.25±0.20
Ø80.0	81.0±1.0	0.60±0.15	≤40.0	1.25±0.20
Ø90.0	91.0±1.0	0.60±0.15	≤45.0	1.25±0.20
Ø100.0	101.0±1.0	0.60±0.15	≤50.0	1.25±0.20
